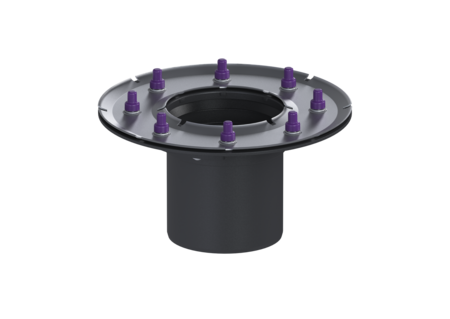

Extension section
H: 147 mm, with pressure sealing flange
Extension section with pressure sealing flange made of Ecoguss. Flange, bolts and screws made of stainless steel for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes.
| Item no. | 48404 |
|---|---|
| GTIN | 4026092077054 |
| Price group | 10 |
Extension section H: 147 mm, with pressure sealing flange
Extension section with pressure sealing flange made of Ecoguss. Flange, bolts and screws made of stainless steel for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes. Variant Seal: Lip seal General characteristics Colour: grey Material: Polymer ATEX: no Dimensions Net weight: 1,74 kg Gross weight: 1,74 kg Diameter: 273 mm Clear width (LW): 125 mm Packaging dimension: length: 302 mm Packaging dimension: width: 302 mm Packaging dimension: height: 175 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Material (material):
Polymer
