Kessel design cover, 304 SST, L 15

48225
48225
PDF product data sheet

KESSEL Upper section, volume 4,9 dm³, type of cover Design cover, locking unlocked, design cover Kessel, Cover Stainless steel 14301

  • Multiple combinations with suitable drain bodies
Item no. 48225
GTIN 4026092042694
Price group 10

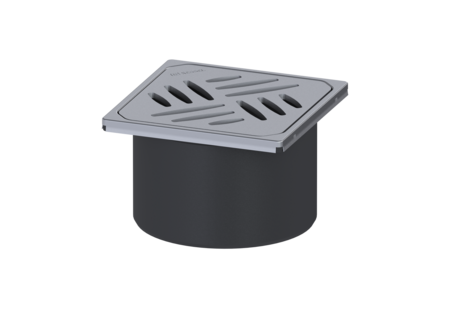

Upper section Kessel design cover, 304 SST, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,5 kg Gross weight: 0,6 kg Length: 132 mm Width: 132 mm Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 9 mm Length of cover: 120 mm Locking: unlocked Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Upper section material: ABS
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
CAD Data
Test Reports and Certificates
  • Cover material (abdeckung_material): Stainless steel 14301
  • TÜV test mark (pruefzeichen): ID 1111243495
  • Upper section material (material_aufsatzstueck): ABS
