Upper section

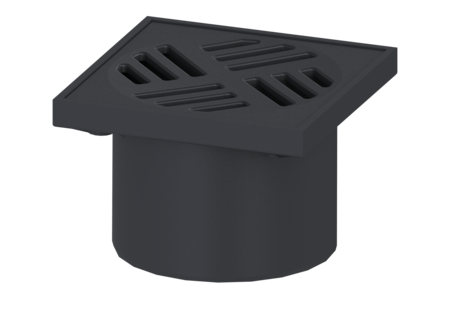

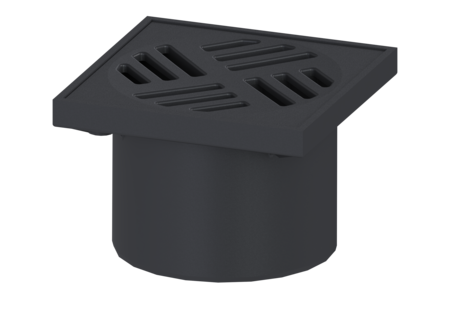

Black slotted cover , 150 x 150 mm, K 3

48193
48193
PDF product data sheet

KESSEL Upper section, volume 2,25 dm³, length 150 mm, width 150 mm, type of cover Slotted cover, locking placed, design cover Kessel, Cover ABS

  • Multiple combinations with suitable drain bodies
Item no. 48193
GTIN 4026092034231
Price group 10

    Upper section Black slotted cover , 150 x 150 mm, K 3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics ATEX: no Dimensions Net weight: 0,34 kg Gross weight: 0,38 kg Height: 100 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Slotted cover Cover material: ABS Colour of cover: black Height of cover: 16 mm Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    60101S Slotted cover 138x138 mm, Polymer 60101S Show
    CAD Data
    • Cover material (abdeckung_material): ABS
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
