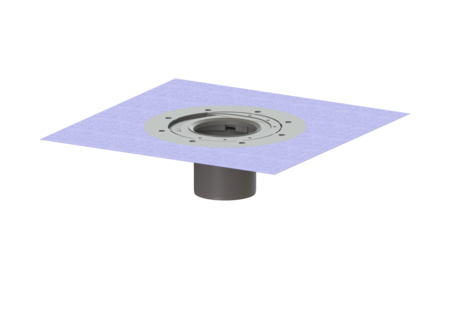

Intermediate section
with system 100 glued flange
KESSEL intermediate section with glued flange System 100 made of ABS, for alternative waterproofing (seal composite) for natural stone coverings such as marble or granite, can be combined with all KESSEL upper sections System 100 (accessories), laterally adjustable to adapt to the tile grid, with construction period protection cover. Overall height: 120 mm
| Item no. | 47900 |
|---|---|
| GTIN | 4026092034194 |
| Price group | 10 |
Intermediate section with system 100 glued flange
KESSEL intermediate section with glued flange System 100 made of ABS, for alternative waterproofing (seal composite) for natural stone coverings such as marble or granite, can be combined with all KESSEL upper sections System 100 (accessories), laterally adjustable to adapt to the tile grid, with construction period protection cover. Overall height: 120 mm Variant System: 100 Dimensions Net weight: 0,94 kg Gross weight: 1,18 kg Diameter: 312 mm Length: 312 mm Width: 312 mm Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
