47812S
PDF product data sheet

KESSEL Upper section, Linearis Compact, length 1150 mm, nominal size (DN) 100, type of cover Stainless steel cover, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Low installation depth
  • Highest fire protection standards
Item no. 47812S
GTIN 4026092079942
Price group 10

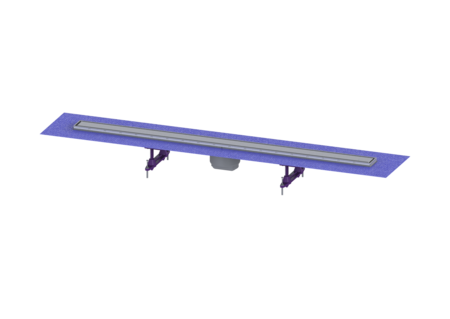

    Upper section, Linearis Compact L: 1150 mm, Sys 100, 304 SST cover, K 3
    Used in combination with a drain body of the KESSEL 100 modular system, the Linearis Compact upper section is suitable for use as indoor linear drainage. Variant System: 100 Seepage opening: yes Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) without backwater: 0,5 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 100 mm ATEX: no Odour trap: included Dimensions Net weight: 2,62 kg Gross weight: 3,9 kg Outer dimension, length: 1215 mm Installation depth: 80 - 140 mm Width: 136 mm Height: 77 mm Packaging dimension: length: 1280 mm Packaging dimension: width: 260 mm Packaging dimension: height: 130 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 1150 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48400 Odour trap Multistop, for Linearis Compact & Scada 48400 Show
    48630 Sound insulation element for Linearis Compact installation supp. 48630 Show
    48639 Installation aid for Linearis Compact 48639 Show
    48650 Installation adhesive 2C installation mortar 48650 Show
    48800 Hair filter Polymer, for shower channels 48800 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • System (system): 100
    • Rim length (rahmen_laenge): 1.150  mm
