Roof drain

Press. fl., DN 100, with leaf trap

45950
PDF product data sheet

KESSEL Roof drain, without, nominal size (DN) 100, volume 10,98 dm³, type of cover Leaf trap, type of waterproofing single waterproofing layer, Cover Polymer

Item no. 45950
GTIN 4026092001318
Price group 10

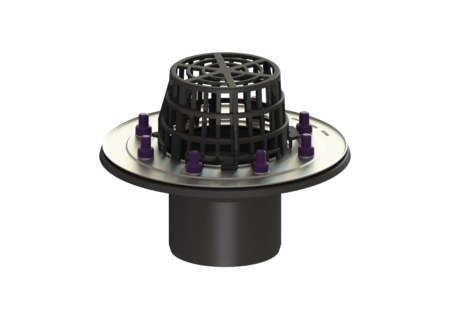

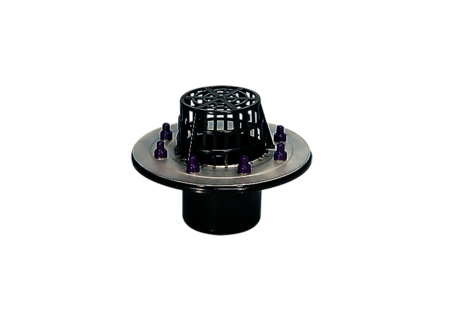

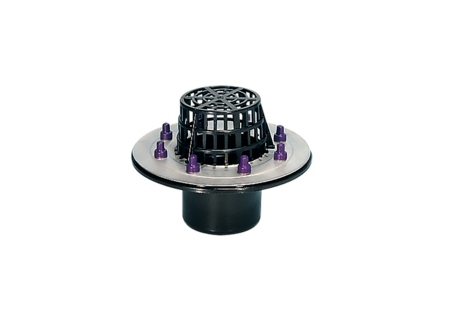

    Roof drain Press. fl., DN 100, with leaf trap
    The roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Variant System: 100 Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Dimensions Net weight: 0,92 kg Gross weight: 1,11 kg Diameter: 246 mm Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Length: 246 mm Width: 246 mm Height: 182 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Material of drain body: PP Coverage features Type of cover: Leaf trap Cover material: Polymer Colour of cover: black Width of cover: 120 mm Height of cover: 80 mm Length of cover: 120 mm Shape of upper section: round Upper section material: PP
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Polymer
    • Upper section material (material_aufsatzstueck): PP
    • (abdichtung_aufsatzstueck):
