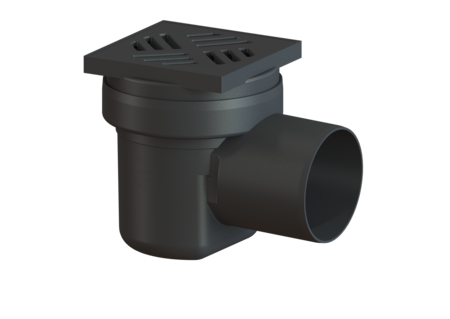

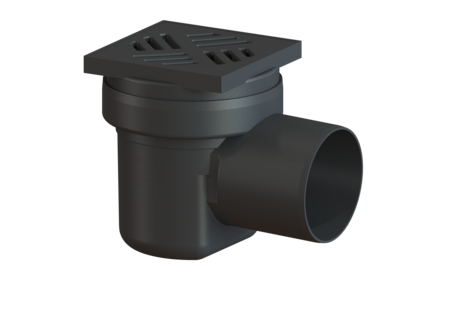

Basement drain

DN 100, Black grating, 138 x 138 mm

36501
PDF product data sheet

KESSEL Basement drain, nominal size (DN) 100, volume 6,96 dm³, type of cover Slotted cover, Cover Polymer, length 150 mm

  • Integrated odour trap
  • Including sludge bucket
Item no. 36501
GTIN 4026092007877
Price group 10

    Basement drain DN 100, Black grating, 138 x 138 mm
    The basement drain made of polymer for floor slab installation is equipped with an odour trap and a sludge bucket. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Sealing water height: 60 mm Discharge rate (l/s) with 20 mm backwater: 1,6 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 18 - 45 mm Net weight: 0,8 kg Gross weight: 0,84 kg Cutout dimension, width: 280 mm Cutout dimension, length: 220 mm Installation depth: 177 - 204 mm Type of height adjustability: vertically adjustable upper section Length: 230 mm Width: 170 mm Height: 159 mm Packaging dimension: length: 230 mm Packaging dimension: width: 170 mm Packaging dimension: height: 178 mm Tank/drain body Material of drain body: PP Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 138 mm Length of cover: 138 mm Surface: Polished SST Frame material: Polymer Locking: placed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: Polymer Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    27602 Adapter DN 100/70 27602 Show
    36590 Extension section for basement drain 36590 Show
      Title Item no.
    27157 Upper section for basement drain, PP, black 27157 Show
    60101S Slotted cover 138x138 mm, Polymer 60101S Show
    60103 Odour trap for basement drain 36501 60103 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Contents of sludge trap (schlammeimer): yes
