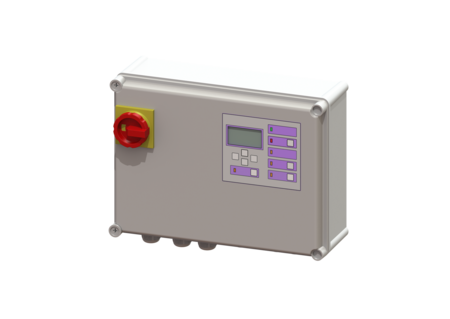

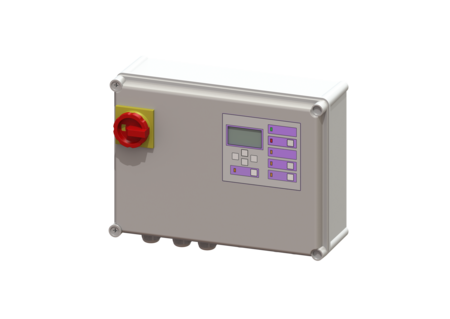

Control unit Comfort Plus
Mono/Duo, 400 V, (2x)4,0-6,3 A
Control unit with visual and acoustic warning device. Depending on the connection to a single or twin pump station, a required fuse protection of C 16 A or C 20 A must be observed.
| Item no. | 28787 |
|---|---|
| GTIN | 4026092066362 |
| Price group | 20 |
Control unit Comfort Plus Mono/Duo, 400 V, (2x)4,0-6,3 A
Control unit with visual and acoustic warning device. Depending on the connection to a single or twin pump station, a required fuse protection of C 16 A or C 20 A must be observed. General characteristics Colour: grey ATEX: no Dimensions Net weight: 5,12 kg Gross weight: 5,47 kg Packaging dimension: length: 395 mm Packaging dimension: width: 195 mm Packaging dimension: height: 320 mm Pumping device Connection type: Direct connection Rated current: 4 - 6,3 A Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 4 - 6,3 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Test Reports and Certificates |
|---|
- Control unit (schaltgeraet):
Comfort Plus
