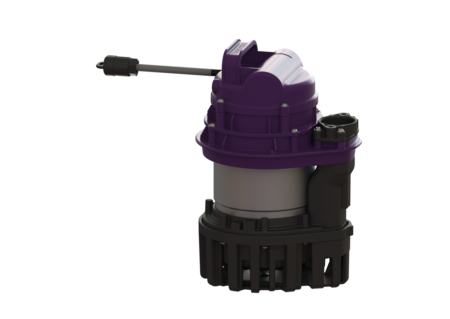

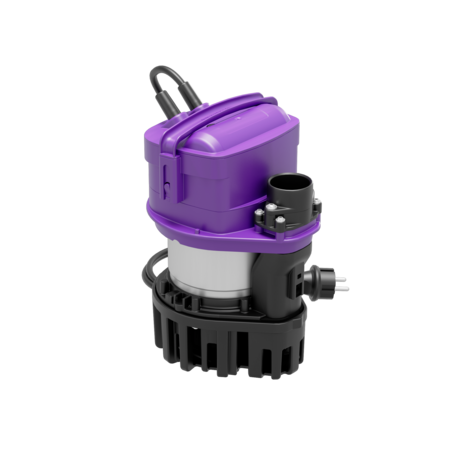

Submersible pump Aquadive GTF1000

resistant, without float switch, 10 m

28760C
28760C
PDF product data sheet

KESSEL Submersible pump Aquadive GTF1000, wastewater without sewage, pump control by without float switch, coded plug, operating mode S1, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, pumping height 10 m

    • Multi-vane vortex impeller for maximum reliability
    • Longitudinally watertight potted connection cable
    • Integrated shallow extraction
    Item no. 28760C
    GTIN 4026092093764
    Price group 20

    Submersible pump Aquadive GTF1000 resistant, without float switch, 10 m
    Submersible pump for faecal-free wastewater Variant Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: without float switch General characteristics Standard: EN 12050-2 Type of wastewater: without sewage ATEX: no Dimensions Net weight: 9,7 kg Gross weight: 10 kg Length: 195 mm Width: 195 mm Height: 290 mm Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Wastewater contents Pressure pipe connection: R 1 ¼ " Pumping device Pump: GTF 1000 resistant Connection type: coded plug Rated current: 5,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,75 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680035 Impeller KTP/SPZ 1000, without intake cover 680035 Show
    680361 Intake cage for faecal-free wastewater, 10 mm 680361 Show
    680364 Spiral housing for passage 10 mm 680364 Show
    • CE marking (ce_kennzeichnung): yes
    • Type of wastewater (abwasserart_de): without sewage
    • Pump (pumpe): GTF 1000 resistant
    • Operating voltage (betriebsspannung): 230  V
    • (niveauerfassung_art):
