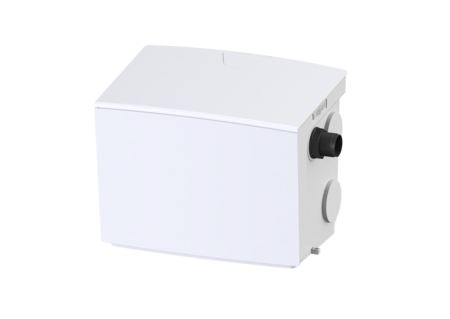

Lifting station Minilift S
GTF1000, resistant, free-standing set-up
KESSEL Lifting station Minilift S, wastewater without sewage, free-standing installation, with a submersible GTF 1000 resistant pump, operating mode S3 - 50 %
- Resistant to hot water
- Variable top and side inlets
- Easy tool-free maintenance
| Item no. | 28563C |
|---|---|
| GTIN | 4026092097021 |
| Price group | 20 |

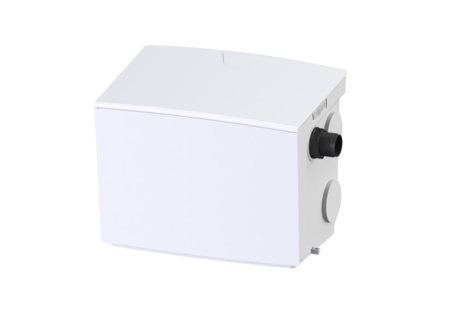

Lifting station Minilift S GTF1000, resistant, free-standing set-up
The plug-in ready Minilift S small lifting station is suitable for the disposal of domestic wastewater and ideal for connecting a shower, bathtub, washbasin, sink, dishwasher or washing machine. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer has an open pump tank and is resistant to aggressive wastewater. Due to its numerous inlets (4x DN 50 horizontal, 1x DN 40 vertical) and adaptable outlets, the system offers flexible and simple options for on-site installation. - Resistance to hot water and brine - Discharge side backflow preventer integrated in the factory - Powerful pump with multi-vane vortex impeller for maximum operating safety - Tool-free maintenance Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: white Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: plug-in ready ATEX: no Dimensions Net weight: 16,35 kg Gross weight: 16,35 kg Length: 425 mm Width: 300 mm Height: 340 mm Packaging dimension: length: 455 mm Packaging dimension: width: 380 mm Packaging dimension: height: 350 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Number of inlets: 5 Pumping volume: 7 l Tank volume: 30 l Inlet vertical (DN): 40 Inlet horizontal (DN): 50 Pumping device Pump: GTF 1000 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,6 A Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 14,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,27 kW Power P2: 0,73 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 5,6 A Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Rubber nipple DN 40 | 680020 | Show |
 | Cable accessories Seal for Minilift | 680021 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Intake cage for faecal-free wastewater, 10 mm | 680361 | Show |
 | Spiral housing for passage 10 mm | 680364 | Show |
 | Impeller for passage 30 mm | 680366 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Pressure pipe connection, pivoted for GTF 1200 and SPZ 1000 | 680793 | Show |
 | Adapter DN 40/50 | 681111 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
free-standing installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Pump (pumpe): GTF 1000 resistant
- (ausfuehrung):
