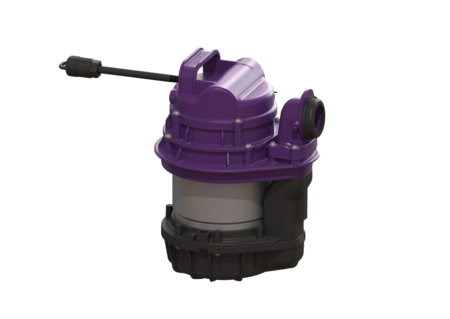

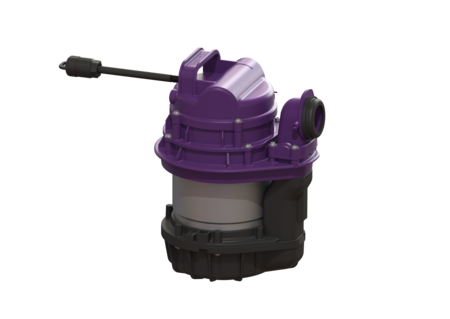

Replacement pump KTP/SPZ 1000
230 V, cable length 5 m
Replacement pump with macerator for wastewater with sewage
| Item no. | 28351 |
|---|---|
| GTIN | 4026092038420 |
| Price group | 90 |
Replacement pump KTP/SPZ 1000 230 V, cable length 5 m
Replacement pump with macerator for wastewater with sewage Variant Pump control: Control unit General characteristics Standard: EN 12050-1 Type of wastewater: with sewage Dimensions Net weight: 10,29 kg Gross weight: 10,62 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPZ 1000 Connection type: coded plug Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Connection type: coded plug Type of fuse required (electrical protection): Fuse protection through control unit 230 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
with sewage
