Shell Kit

Aqualift S Compact black GTF1200 Mono

280501S-RBK
280501S-RBK
PDF product data sheet

KESSEL Shell Kit Aqualift S Compact black GTF1200 Mono, wastewater without sewage, floor slab installation, with a submersible GTF 1200 pump

Item no. 280501S-RBK
GTIN 4026092106945
Price group 20

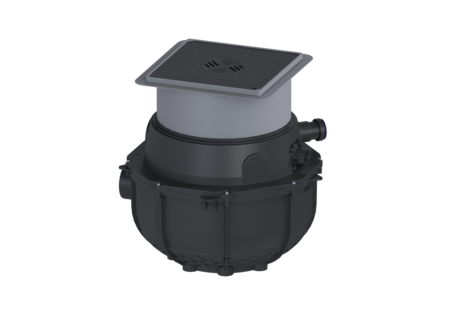

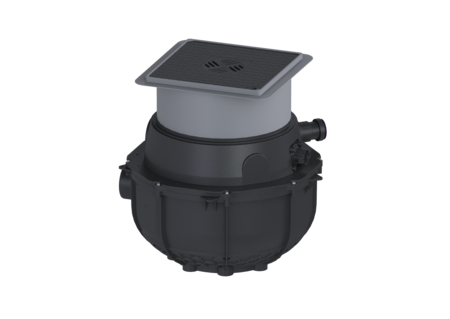

    Shell Kit Aqualift S Compact black GTF1200 Mono
    For combination with a KESSEL technology kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - PE collection tank, resistant to aggressive wastewater and 3 m groundwater - Includes backflow preventer for the pressure pipe - Includes connection socket for inlet and conduit pipe Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 15,7 kg Gross weight: 15,7 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Tank volume: 65 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: GTF 1200 Number of pumps: 1 Max. pumping height: 9 m
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): without sewage
    • Type of cover (abdeckungsart): Cover plate with slotted cover
    • Pump (pumpe): GTF 1200
