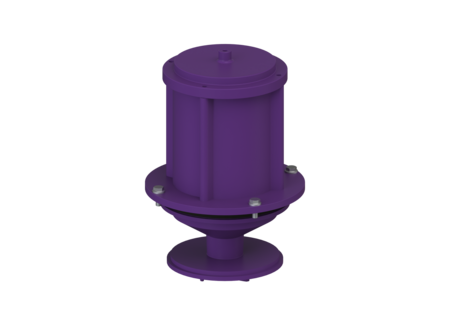

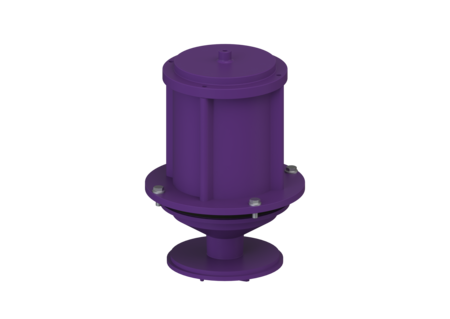

Pump drive SPF 4500
400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater w/ sewage
| Item no. | 28026 |
|---|---|
| GTIN | 4026092058633 |
| Price group | 90 |
Pump drive SPF 4500 400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater w/ sewage General characteristics Type of wastewater: with sewage Dimensions Net weight: 26 kg Gross weight: 28 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 4500 Connection type: Direct connection Rated current: 7,5 A Protection class: I Run dry safe: no Protection class (pump): IP 68 (3m/48h) Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 20 m Speed: 2850 U/min Power P1: 4,5 kW Power P2: 3,5 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- TÜV test mark (pruefzeichen):
ID 1111241940
- Type of wastewater (abwasserart_de):
with sewage
