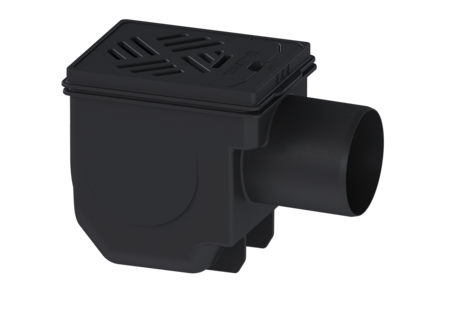

Drehfix basement drain

DN 100, Black grating, Type 5

27301
27301
PDF product data sheet

KESSEL Drehfix basement drain, nominal size (DN) 100, volume 9,76 dm³, type of cover Slotted cover

  • Integrated backwater protection
  • Simple toolless maintenance and cleaning
Item no. 27301
GTIN 4026092007815
Price group 10

Drehfix basement drain DN 100, Black grating, Type 5
The basement drain for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Contents of sludge trap: yes Emergency closure: yes Discharge rate (l/s) with 20 mm backwater: 1,8 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: installation-ready Backwater protection: Type 5 ATEX: no Odour trap: included Dimensions Net weight: 1,49 kg Gross weight: 1,51 kg Cutout dimension, width: 190 mm Cutout dimension, length: 320 mm Installation depth: 210 - 240 mm Type of height adjustability: vertically adjustable upper section Length: 285 mm Width: 168 mm Packaging dimension: length: 280 mm Packaging dimension: width: 170 mm Packaging dimension: height: 205 mm Coverage features Type of cover: Slotted cover Colour of cover: black Load class: K 3 (EN 1253-1) Grating material: Polymer Grating colour: black Grid size, length: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm Contents of sludge trap: yes Cover Grating colour: black Grating material: Polymer Grid size, length: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm
  Title Item no.
  Title Item no.
  Title Item no.
27602 Adapter DN 100/70 27602 Show
27609 Anti-rat protection Insert made of stainless steel 27609 Show
38670 Extension section H: 183 mm 38670 Show
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Show
39100 Inlet socket DN 100, with seal, Threaded ring 39100 Show
500101 Hole saw for DN 50/70/100 500101 Show
  Title Item no.
27205 Slotted cover 190x150 mm, polymer, black 27205 Show
27308 Sludge bucket for Drehfix basement drain, from 01/2002 27308 Show
27603 Backwater valve Module for basement drains with 2 flaps 27603 Show
70214 Testing funnel with seal 70214 Show
Manuals
CAD Data
Declaration of Performance
  • Nominal size (DN) (nennweite): 100
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Backwater protection (rueckstauschutz): Type 5
  • Installation depth (einbautiefe): 210  mm
  • Odour trap (geruchsverschluss): included
