Upper section

Sys100, Kessel des cover, 304SST, L15

27201
PDF product data sheet

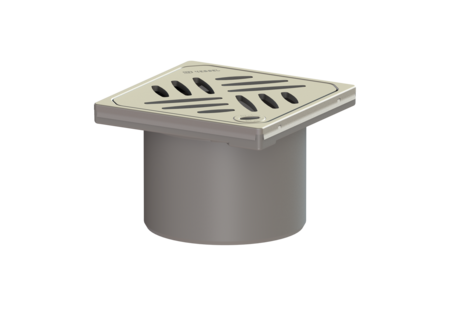

KESSEL Upper section, height 90 mm, length 132 mm, width 132 mm, type of cover Design cover, locking Lock & Lift, frame material Stainless steel 14301, design cover Kessel

  • Different covers selectable
  • Stainless steel covers
Item no. 27201
GTIN 4026092028735
Price group 10

    Upper section Sys100, Kessel des cover, 304SST, L15
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,48 kg Gross weight: 0,52 kg Height: 90 mm Packaging dimension: length: 132 mm Packaging dimension: width: 132 mm Packaging dimension: height: 90 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680702 Release key for Lock & Lift 680702 Show
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
